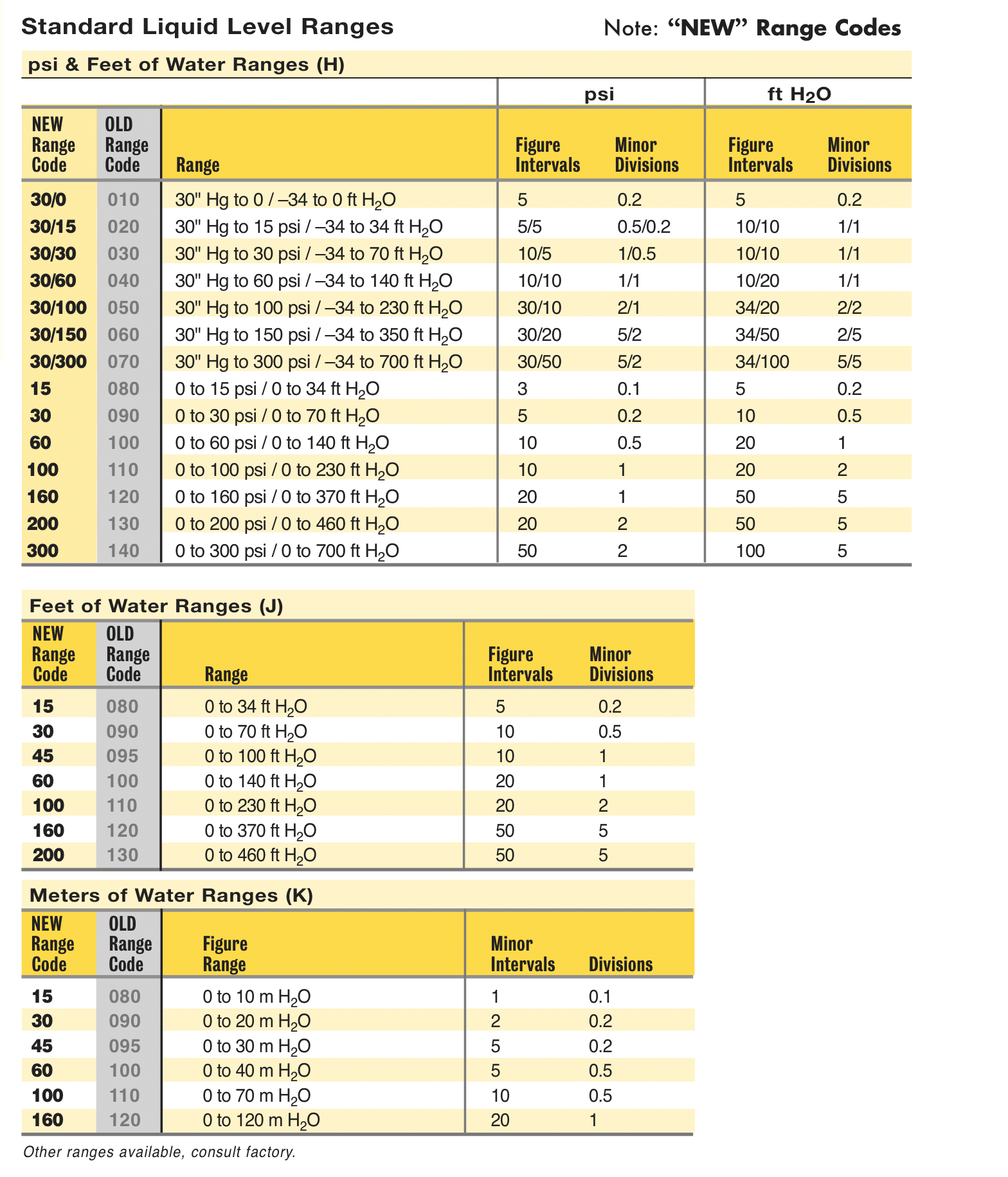

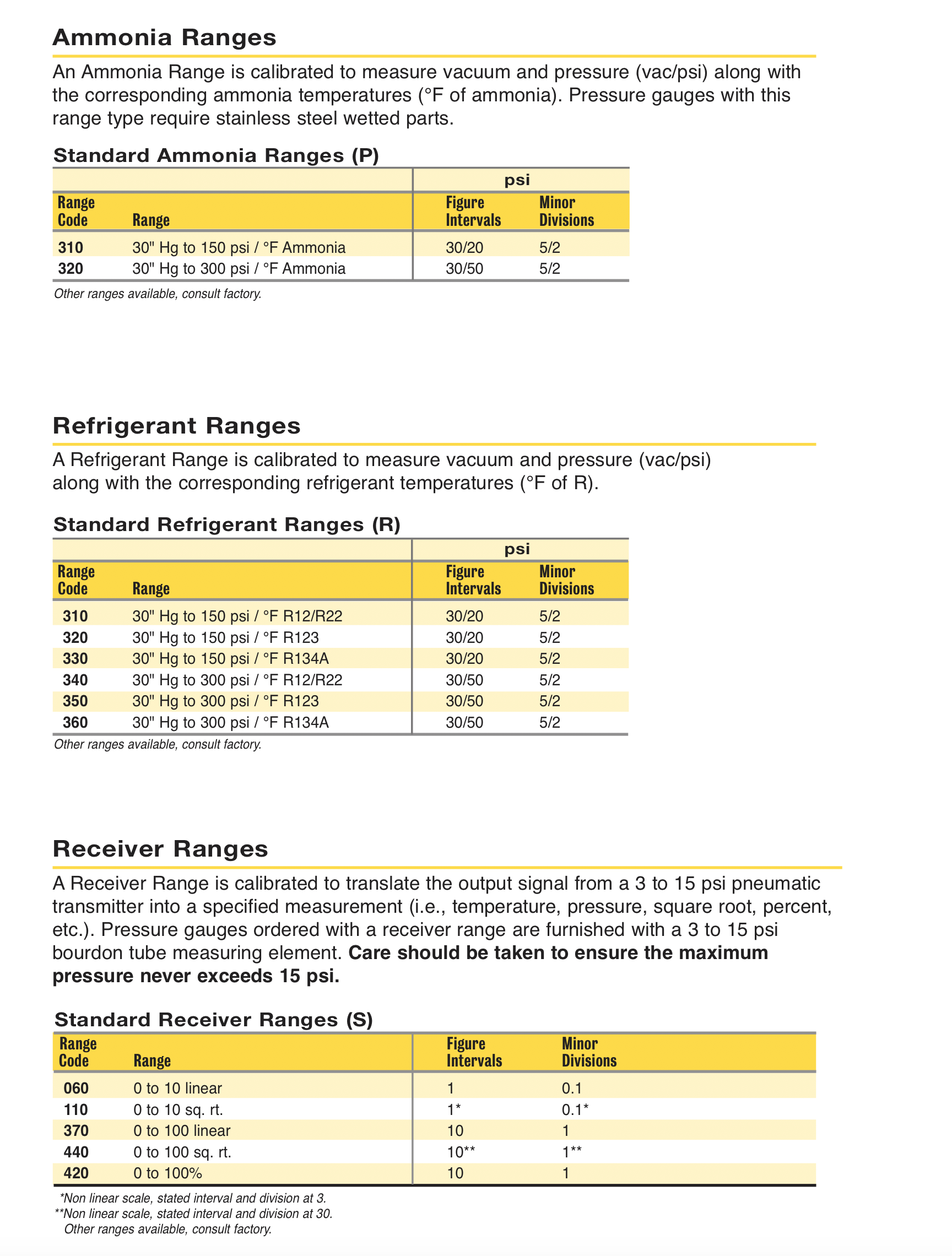

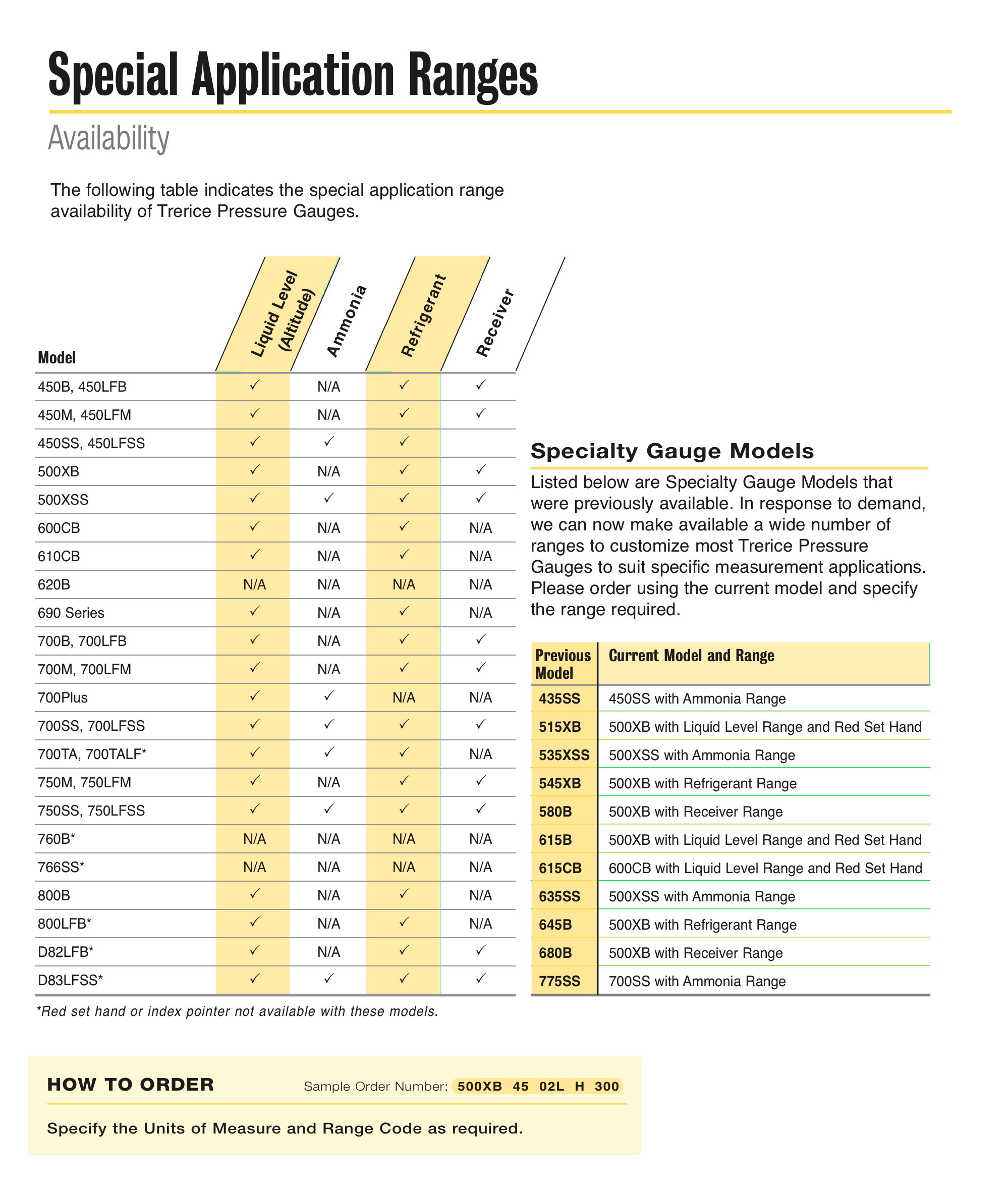

Specialty – Special Application Ranges
Brass • 316L Stainless Steel / Dry or Liquid Filled

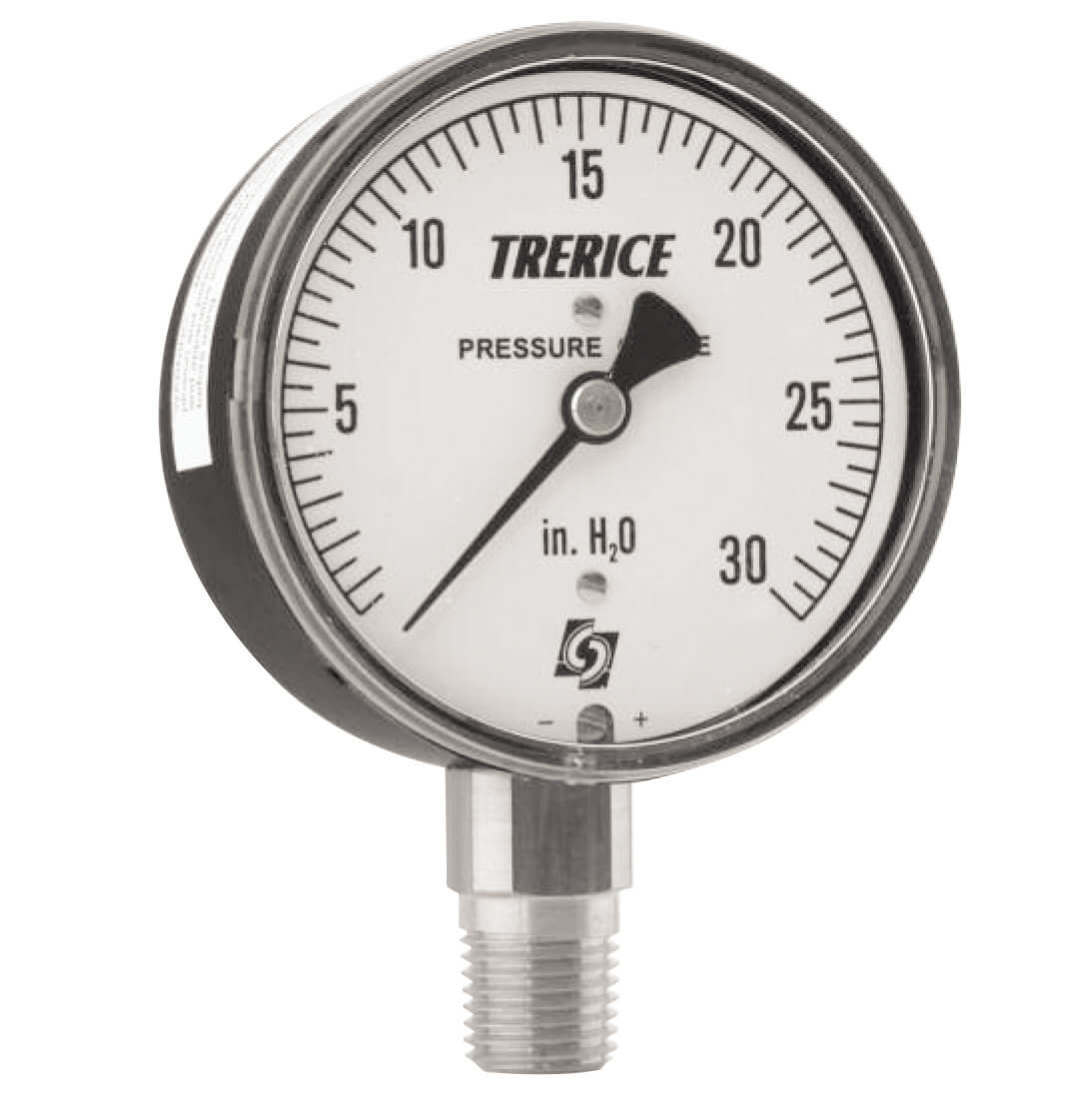

The Trerice760B Low Pressure Gauge is designed to accurately measure extreme low pressure conditions. This pressure gauge employs a diaphragm capsule sensing element to measure the low pressure. Case material is drawn steel with brass wetted parts.
How to Order
Dimensional Drawings
Complete Specifications
| Models | Wetted Parts |
| D82B (dry) D82LFB (liquid-filled) | Bronze tube, brass socket Lead-Free (PBF) Meets NSF/ANSI Standards 372 and 61 |
| D83SS (dry) D83LFSS (liquid-filled) | 316 Stainless steel tube & socket |
| Dial Size | 1½", 2", 2½", 4" |
| Fill | Glycerine. Other fills available. See Options & Accessories. |
| Movement | D82: Brass D83: 316 Stainless steel |
| Connection | Lower male or center back male, (Lower back male 4" Dial only) |
| Case | 304 stainless steel, satin finished, stem-mounted flangeless |
| Ring | Crimped 304 stainless steel |
| Window | Acrylic |
| Pointer | Plain, black finished |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | ±1.6% Full Scale (1% available as an option) |
| Maximum Temperature | 150°F (65°C) |
| Approximate Shipping Weight | 1½" Dial Size: 0.4 lbs [0.18 kg] 2" Dial Size: 0.4 lbs [0.18 kg] 2½" Dial Size: 0.5 lbs [0.23 kg] 4" Dial Size: 1.0 lbs [0.45 kg] |

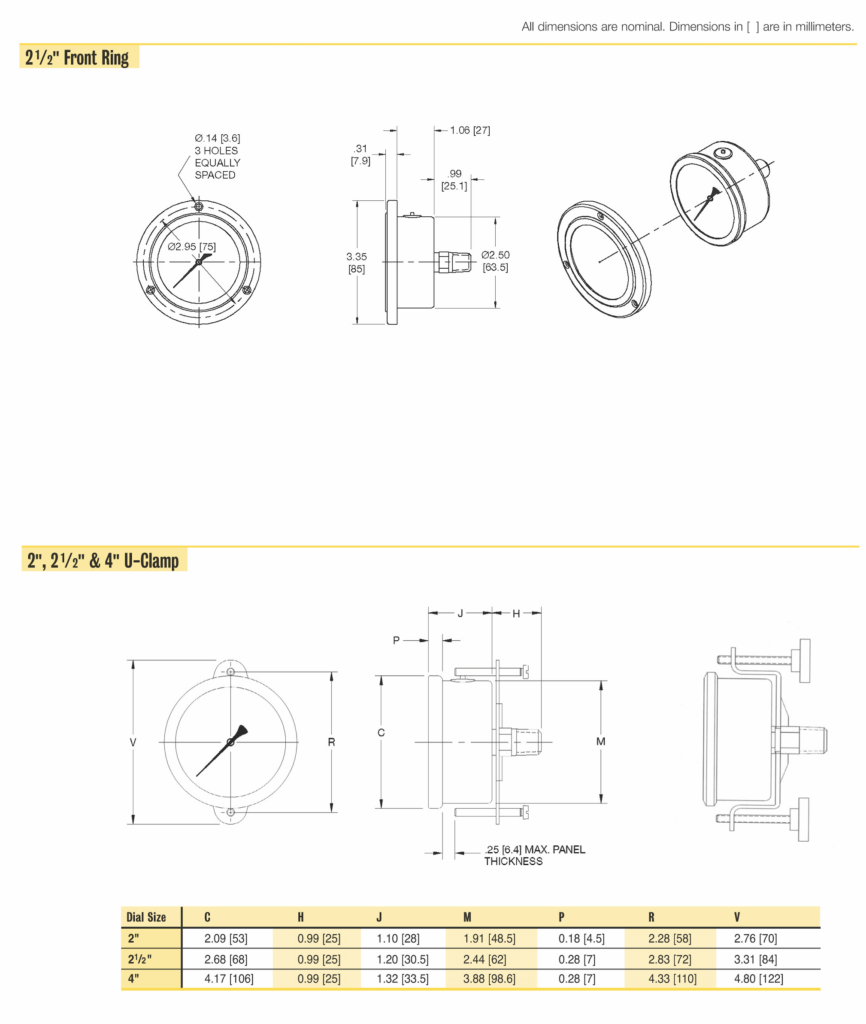

Optional Case Styles

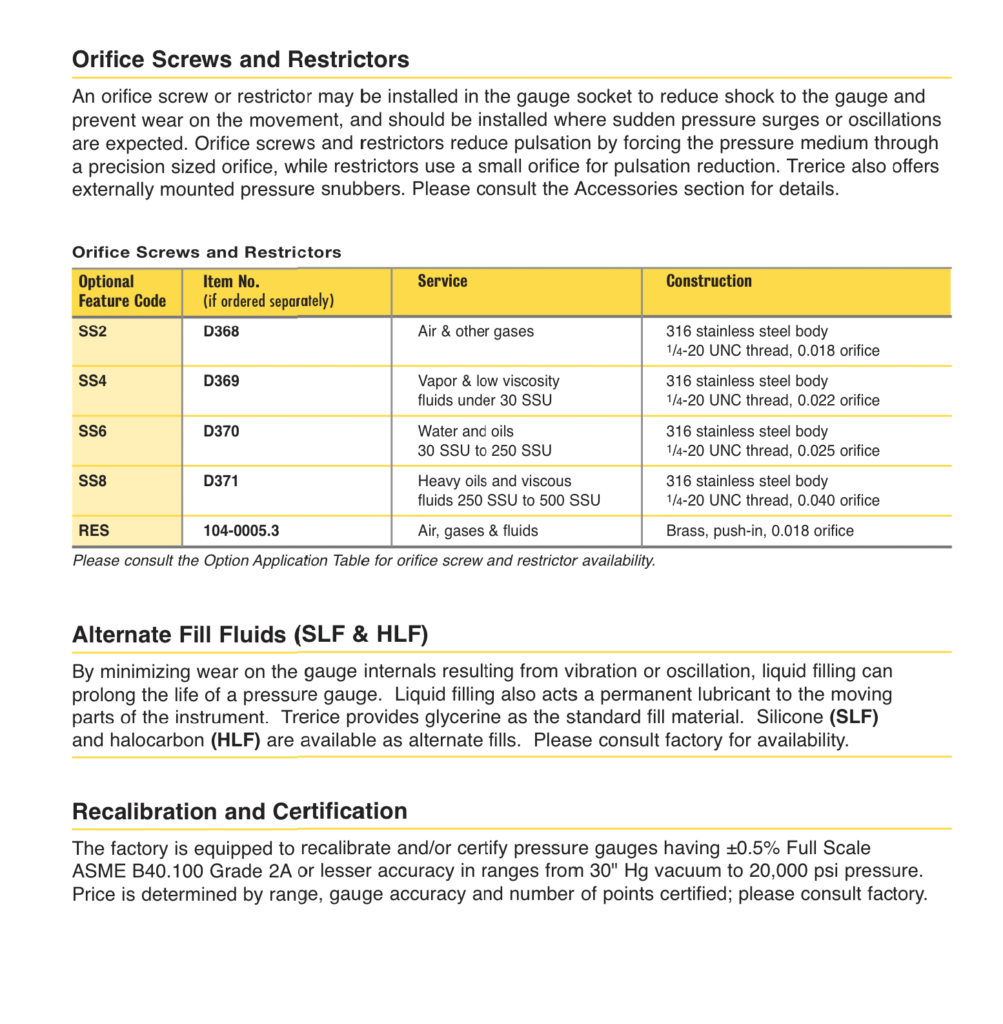

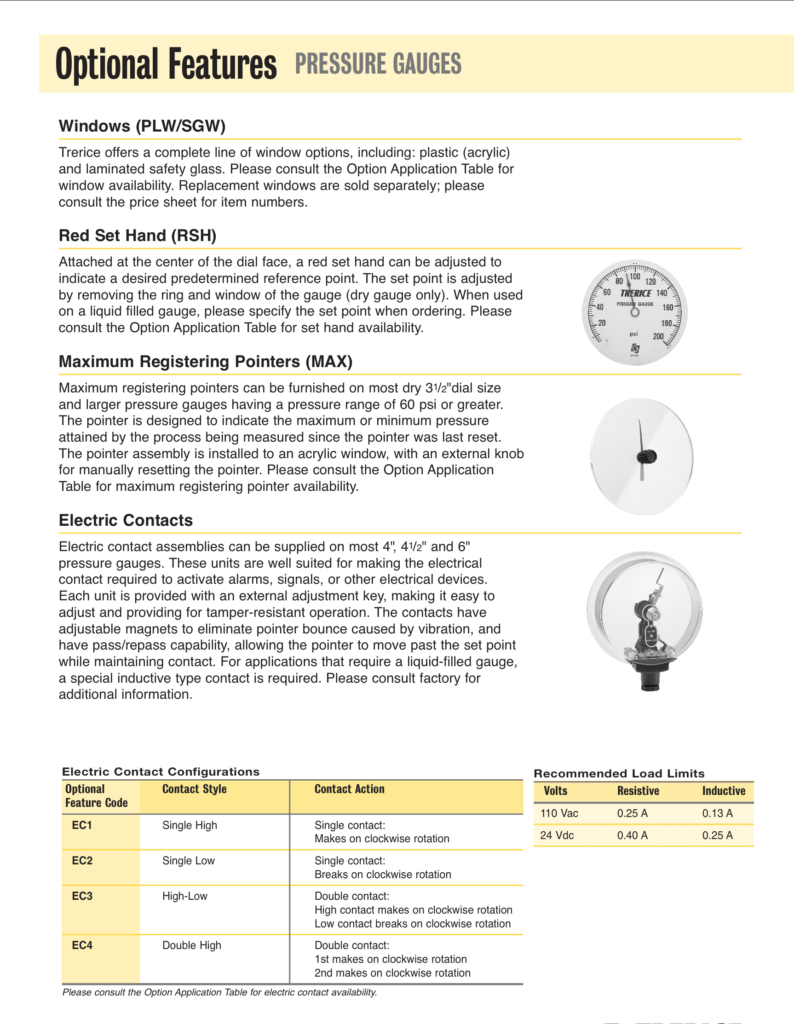

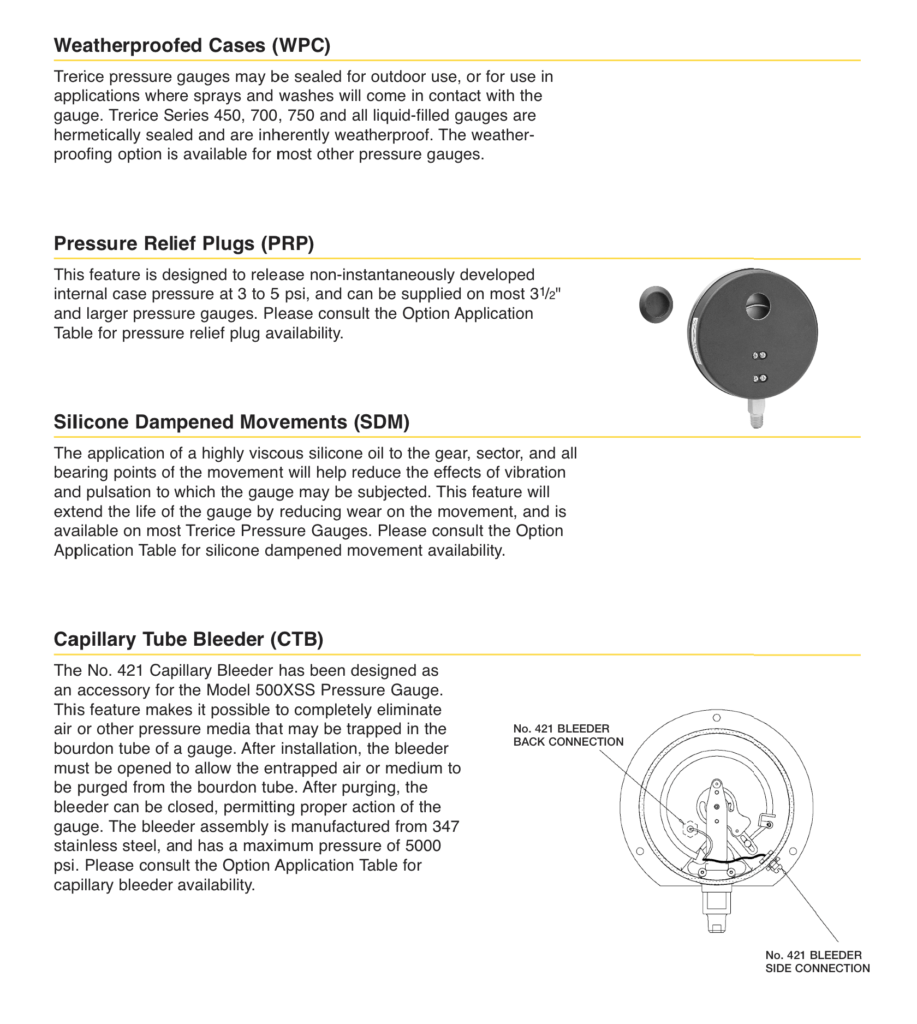

Optional Features
Download D80 PDF
