D87 Series
Features
Provides 360° gauge orientation for easier viewing
Eliminates the need for PTFE tape or other sealants
Tube Stub Connection • Liquid Filled or Dry • Stainless Steel Case

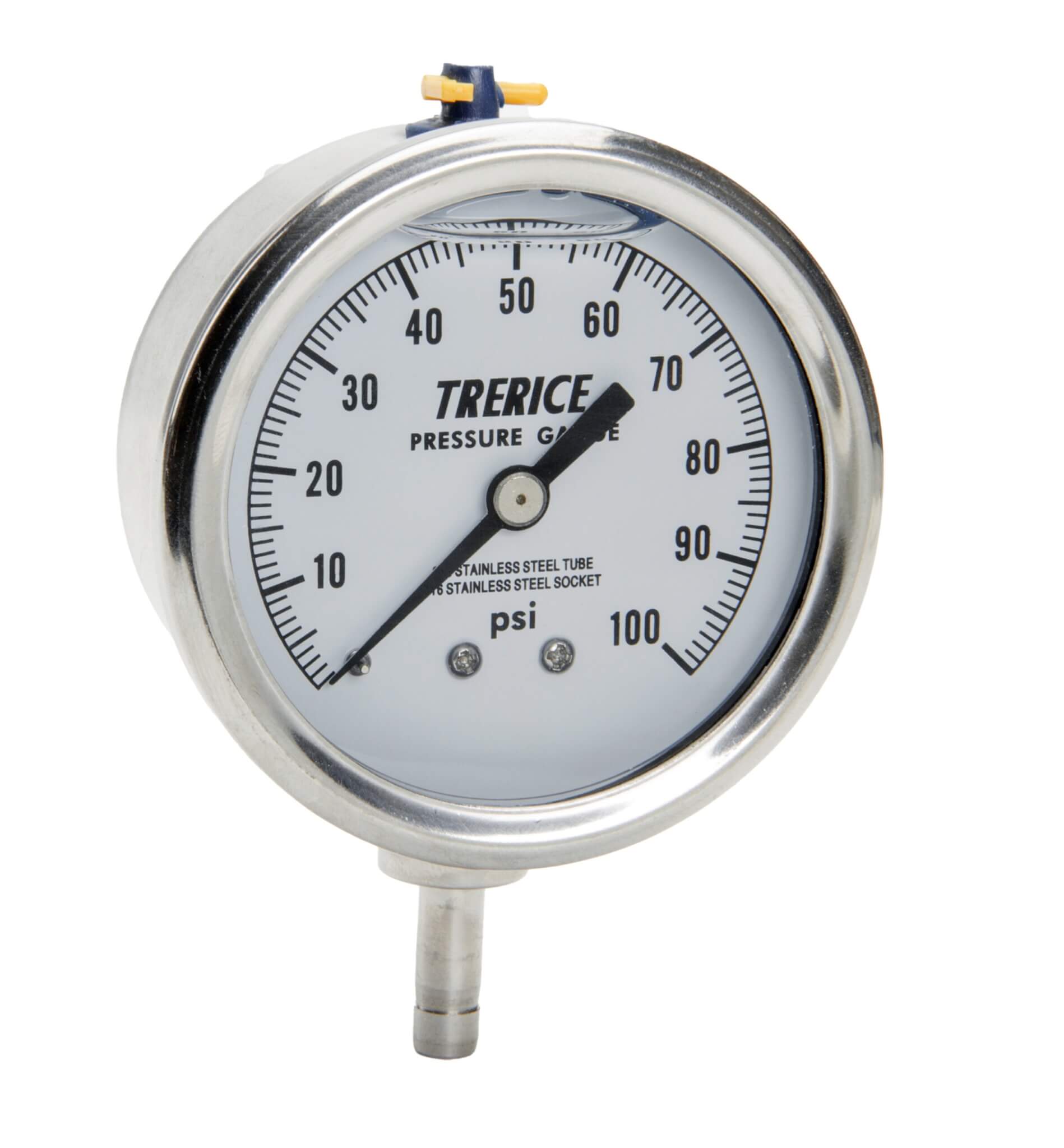

The Trerice D87 Series Industrial Gauge is provided with a Tube Stub connection which allows for 360° orientation of the gauge for better viewing and eliminates the need for PTFE tape or other sealing materials. All welded design through to the bourdon tube ensures robust construction and eliminates potential leakage due to mechanical connections.
Available connection sizes include ¼” and 3/8”. In addition, the D87 Series features a rugged stainless-steel case and crimped ring. Wetted parts are also stainless steel. The gauge comes standard glycerin filled to help reduce pointer flutter and lubricate the movement. For higher temperature applications a dry version (model D87SS) is available.
| Case Material | 304 stainless steel, stem-mounted flangeless |
|---|---|
| Internals | Stainless Steel / Dry or Liquid Filled |
| Connection Size | 1/4" or 3/8" Tube Stub, lower or center back mount |
| Dial Size | 2½" |
| Accuracy | ±1.6% Full Scale |
How to Order
Dimensional Drawings
Complete Specifications
| Models D82B (dry) D82LFB (liquid-filled) | Wetted Parts 316 Stainless steel, tube & socket |
| Dial Size | 2½" |
| Fill | Glycerine. Other fills available. See Optional Features Section |
| Movement | 316 Stainless steel |
| Connection | ¼" or 3/8" Tube Stub, lower mount |
| Case | 304 stainless steel, stem-mounted flangeless |
| Ring | Crimped 304 stainless steel |
| Window | Acrylic |
| Pointer | Plain, black finished |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | ±1.6% Full Scale |
| Maximum Temperature | D87LFSS (liquid filled): 150°F (65°C) D87SS (dry): 250°F (121°C) |
| Approximate Shipping Weight | 0.5 lbs [0.23 kg] |
Optional Features
Download D87 Series PDF
