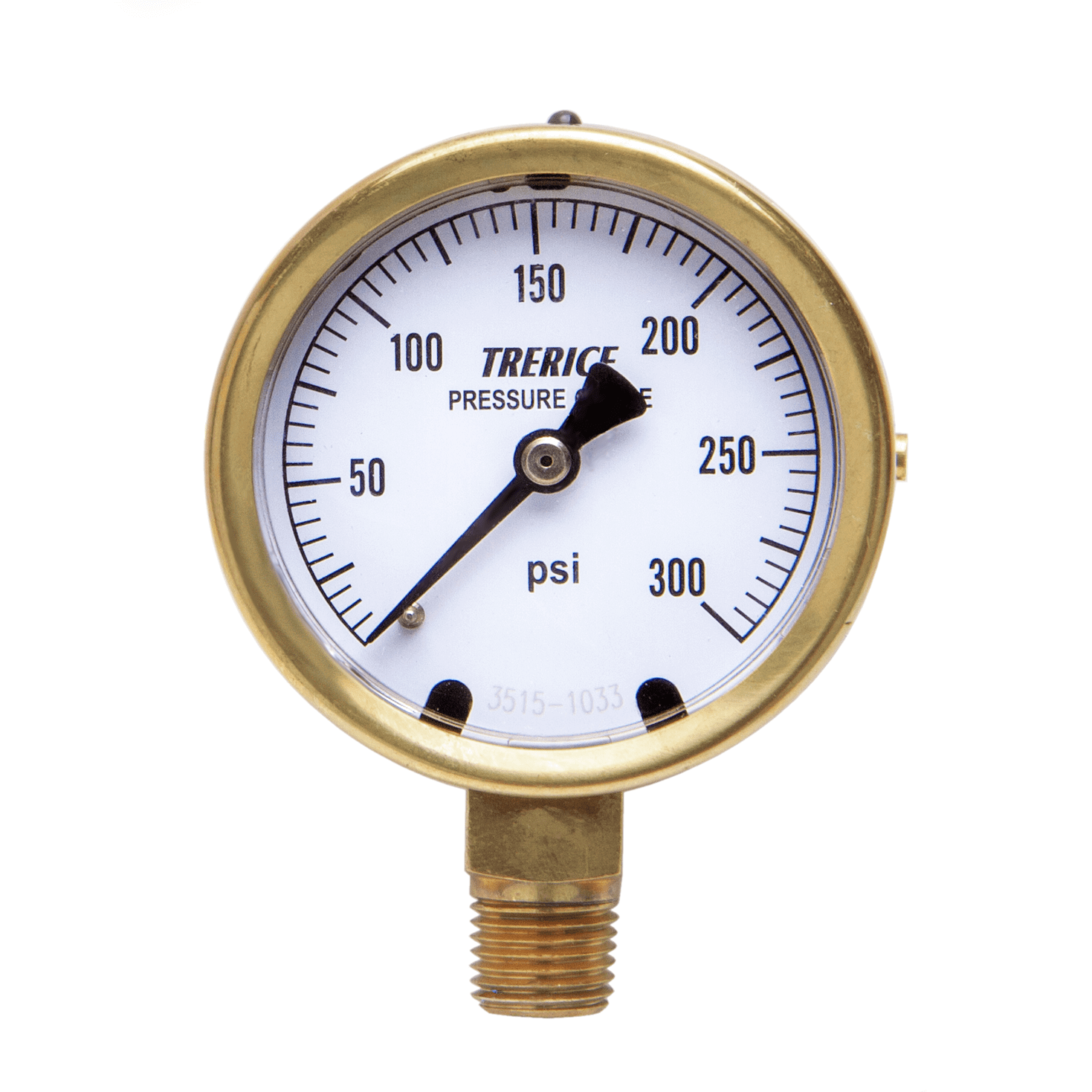

875 Series
Dry or Liquid Filled • Brass Case
The Trerice 875 Serice is designed for severe service applications. The one piece forged brass case and socket is able to withstand the harshest industrial processes. Glycerin fill is available to help protect against vibration and shock.
| Case Material | Forged Brass |
|---|---|
| Internals | Copper Alloy, Forged Brass / Dry or Liquid-filled |
| Connection Size | • ¼ NPT |
| Connection Location | Lower Male |
| Dial Size | 2½" |
| Accuracy | ±2-1-2% Full Scale |

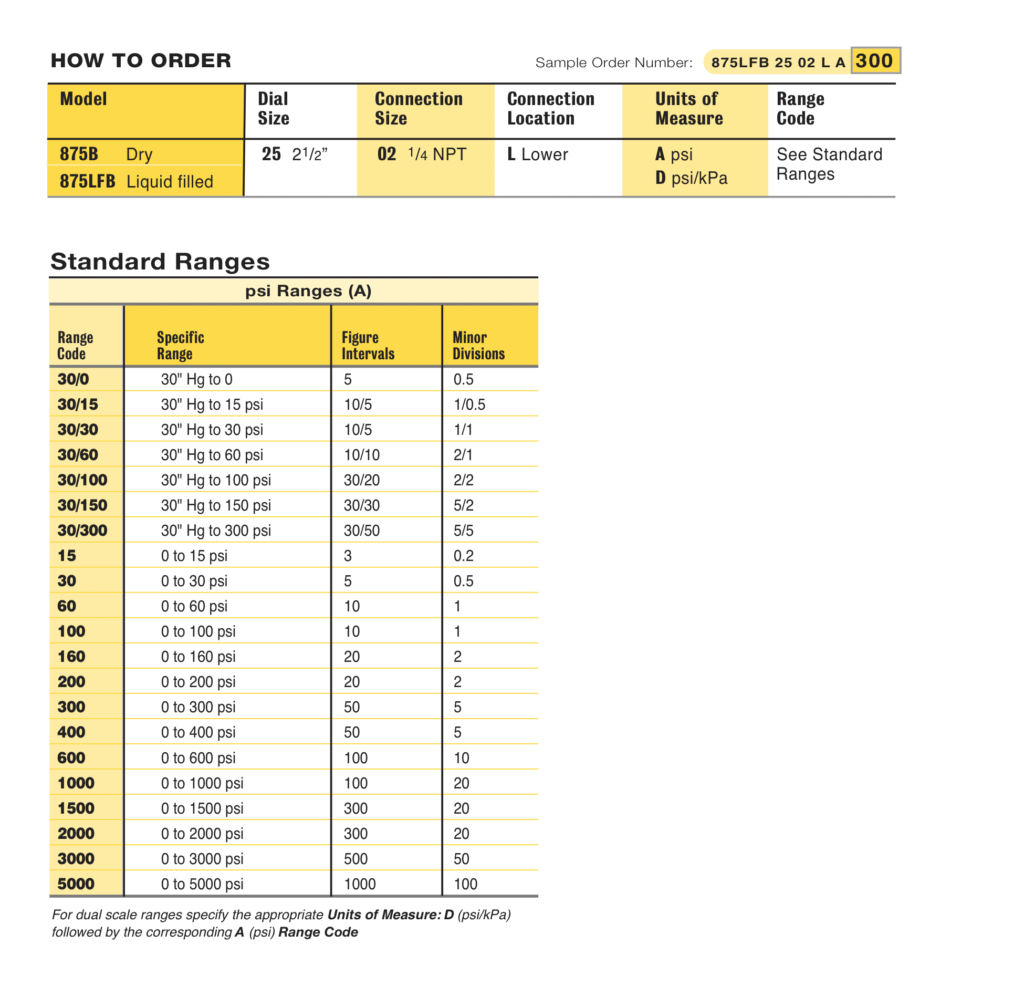

How to Order

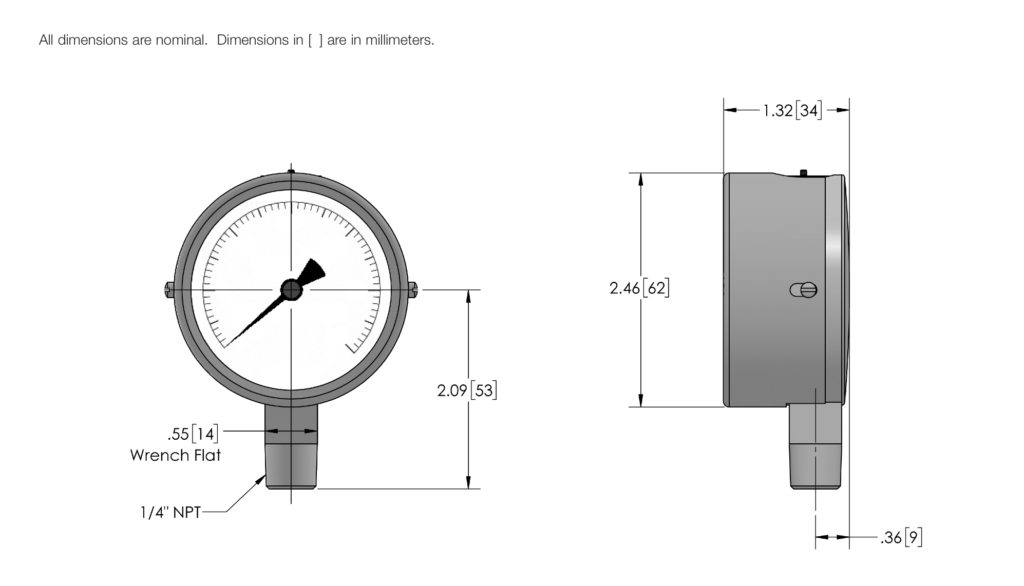

Dimensional Drawings
Complete Specifications
| Models | |
| 875B (dry) 875LFB (liquid-filled) | |
| Dial Size | 2½" |
| Wetted Parts | Copper alloy tube and forged brass socket |
| Fill | Glycerin. Other fills available. See Options & Accessories. |
| Movement | Brass |
| Connection | Lower male, ¼ NPT |
| Case | Forged Brass |
| Ring | Press-in window with Polycarbonate Cover |
| Window | Polycarbonate |
| Pointer | Aluminum, black finished |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | ±2-1-2% Full Scale, ASME B40.100 Grade A |
| Weather Protection | NEMA 4X / IP65 |
| Maximum Temperature | |
| 140°F (60°C) | |
| Approximate Shipping Weight | 875B: (dry) 0.65 lbs [0.29 kg) 875LFB: (liquid filled) 0.78 lbs [0.35 kg) |
Optional Features
Download 875 Series PDF
