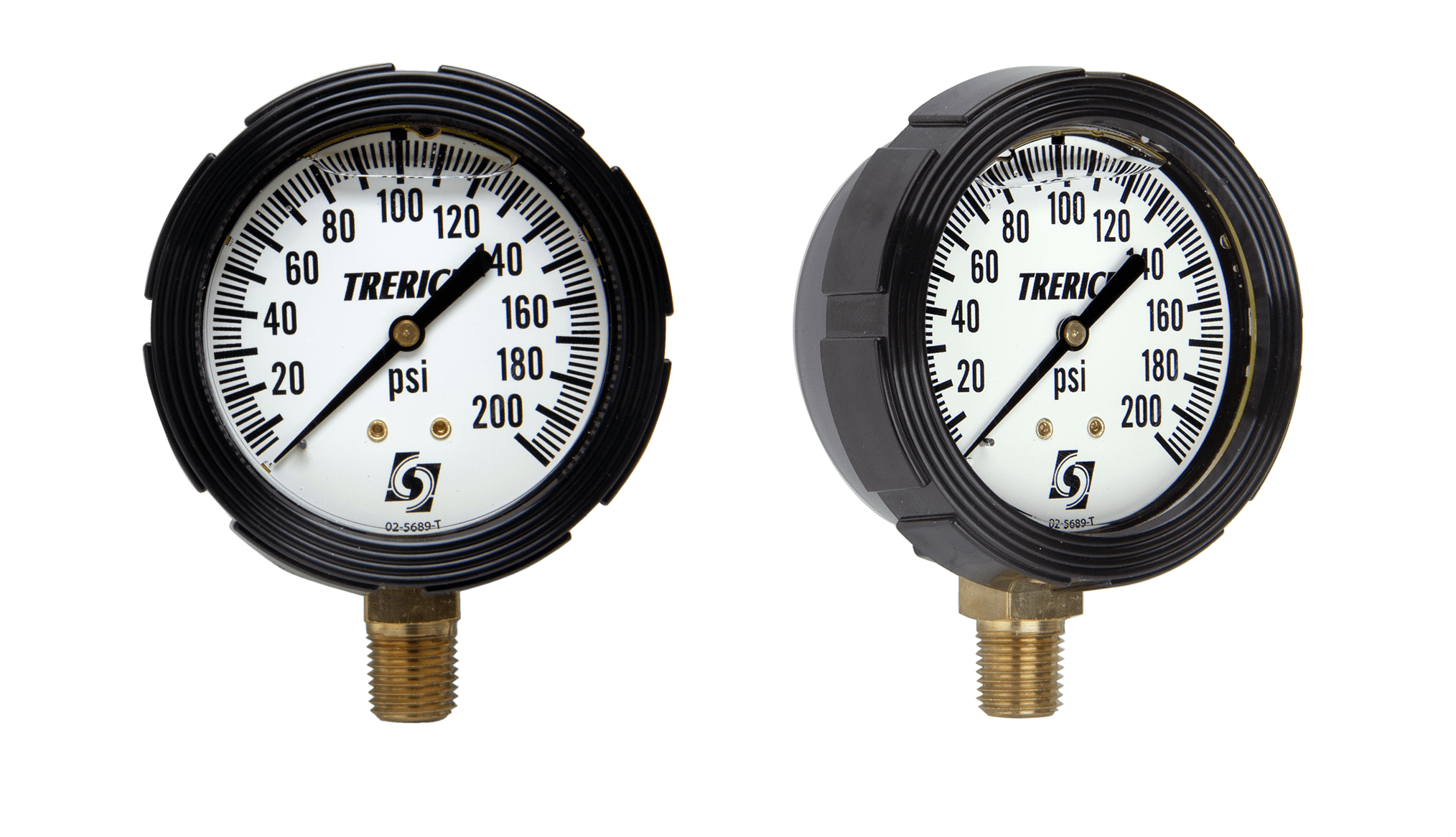

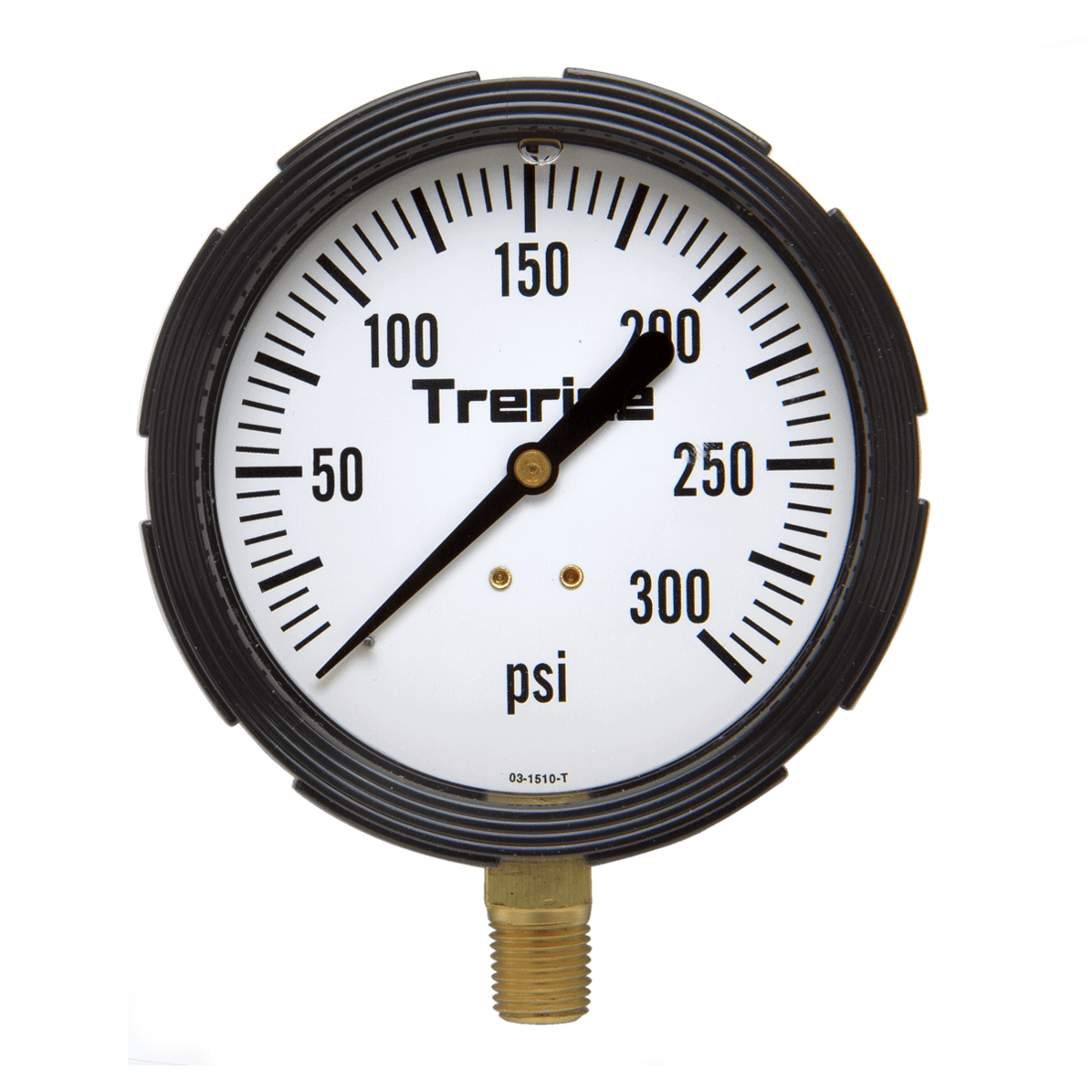

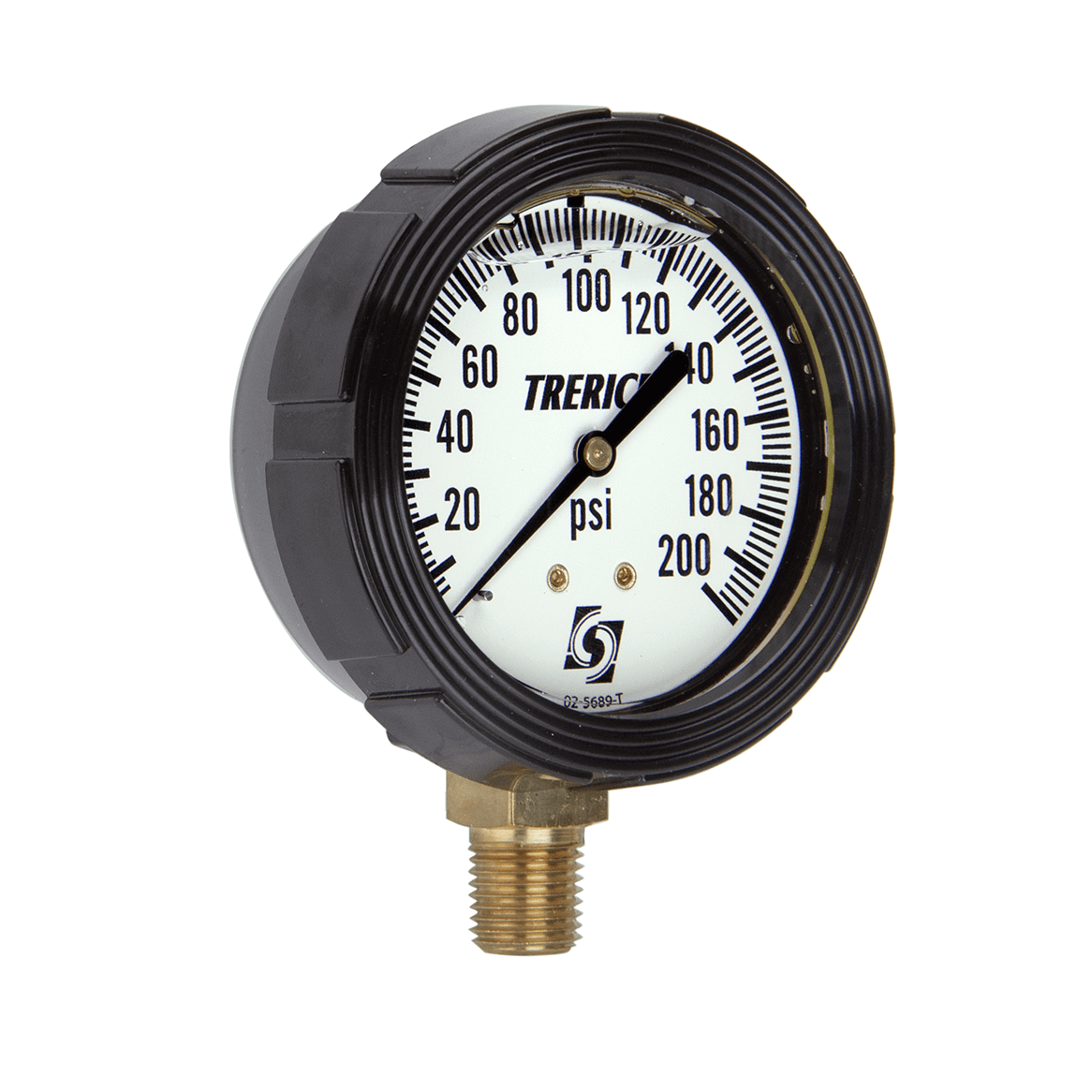

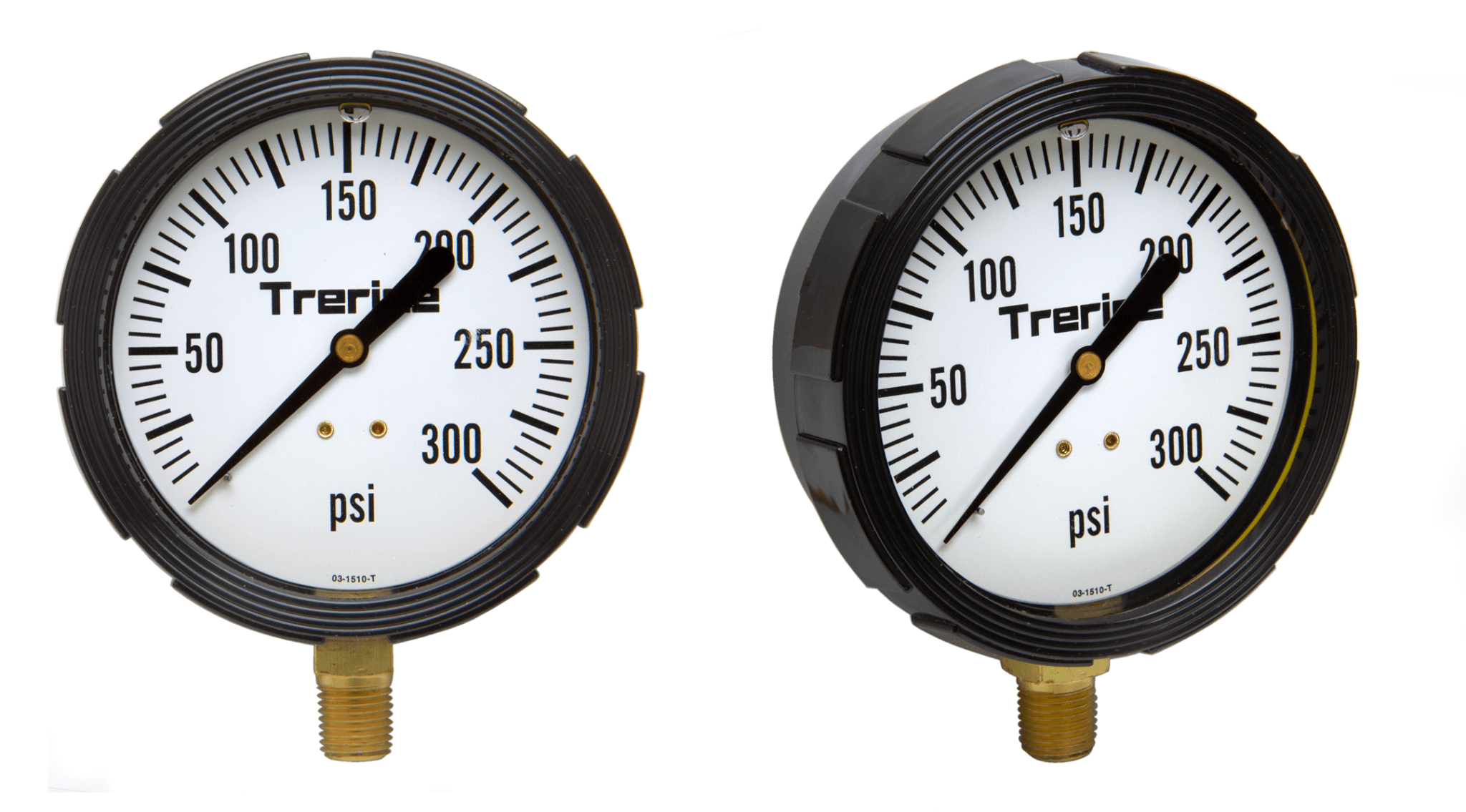

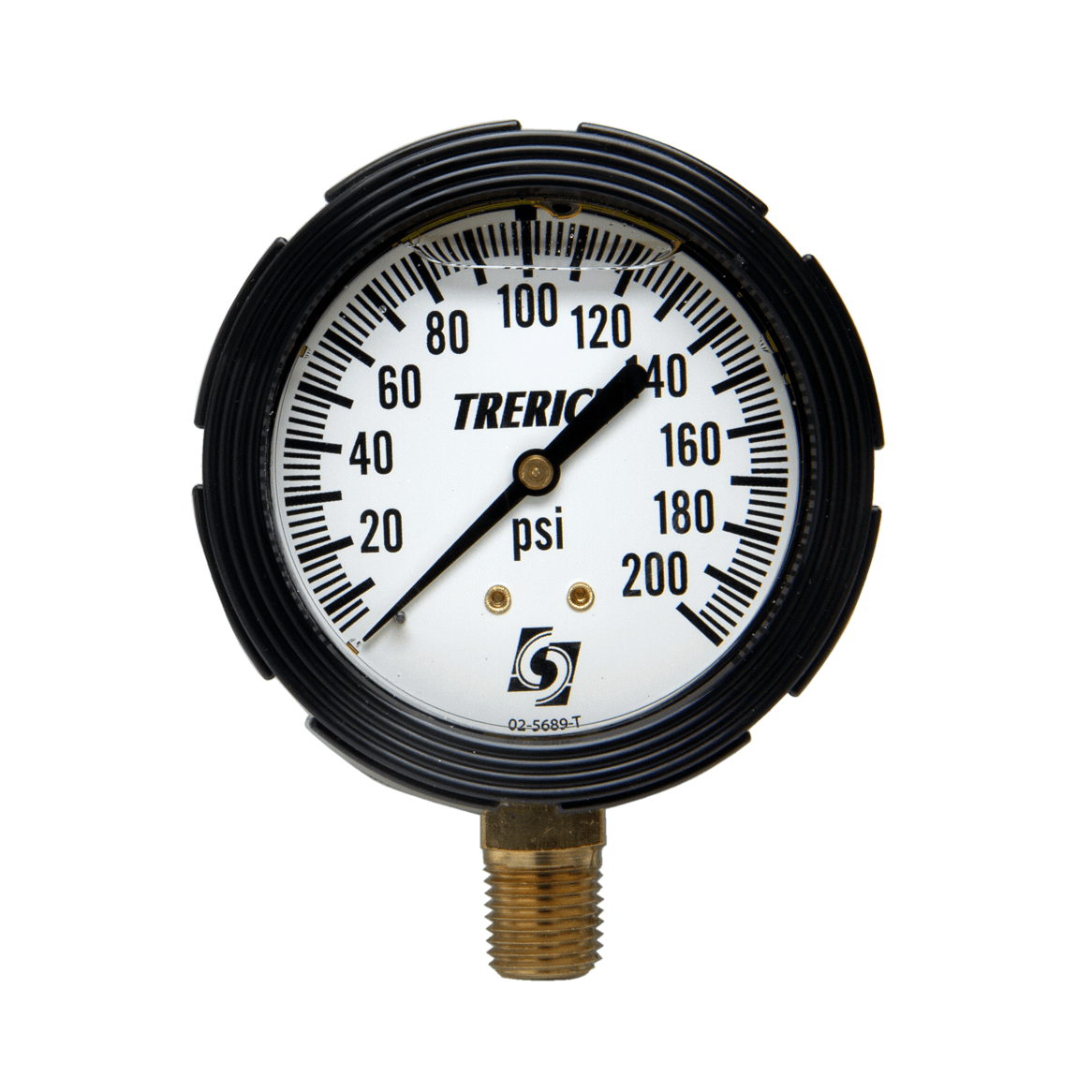

800LFB
Liquid Filled • Plastic Case
The Trerice 800LFB Utility Gauge is designed to meet the needs of general industrial applications. The gauge features a rugged, plastic, liquid filled case to withstand minor vibration and pulsation conditions. Wetted parts are bronze tube with brass socket.
Additional information
| Case Material | ABS Plastic, stem-mounted flangeless, Nylon, stem-mounted flangeless |
|---|---|
| Internals | Brass, Bronze Tube |
| Connection Size | • ⅛ NPT, • ¼ NPT |
| Connection Location | Lower Male, Center Back Male |
| Dial Size | 2", 2½", 3½" |
| Accuracy | ±1.0% Full Scale, ±1.6% Full Scale |

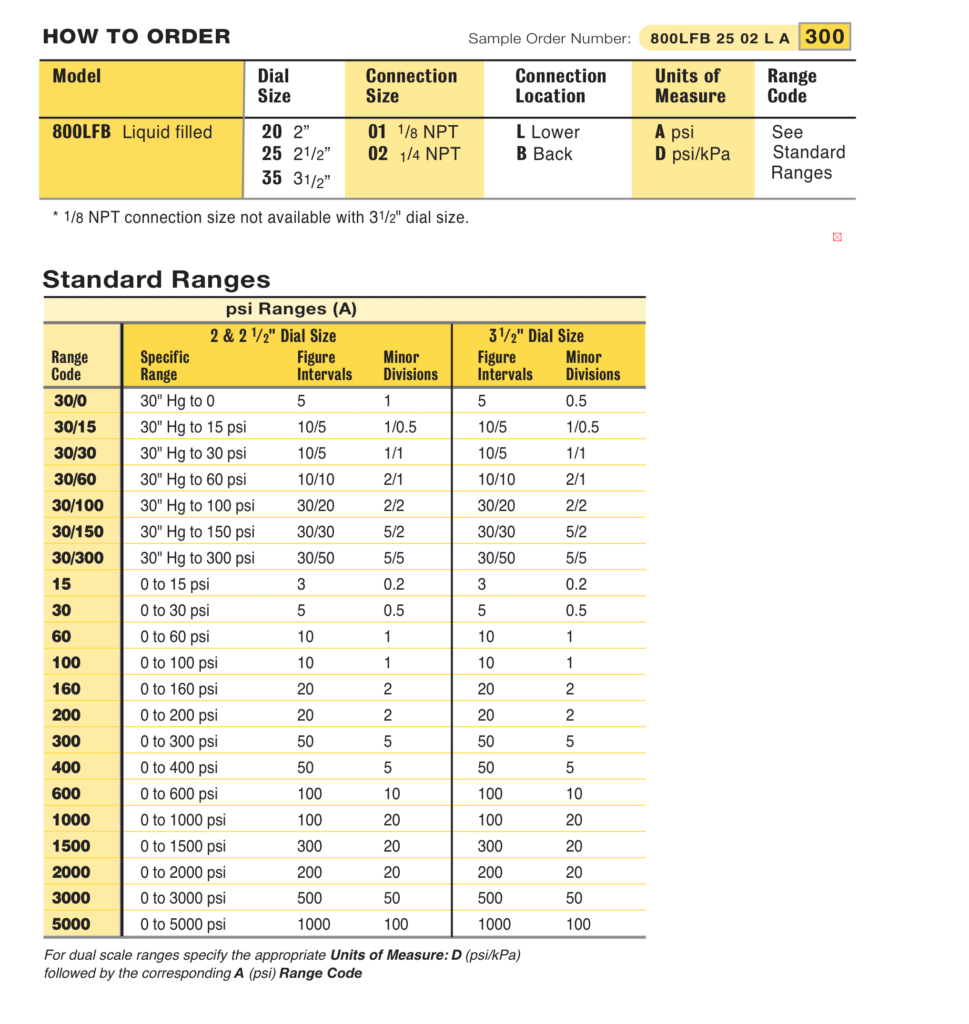

How to Order

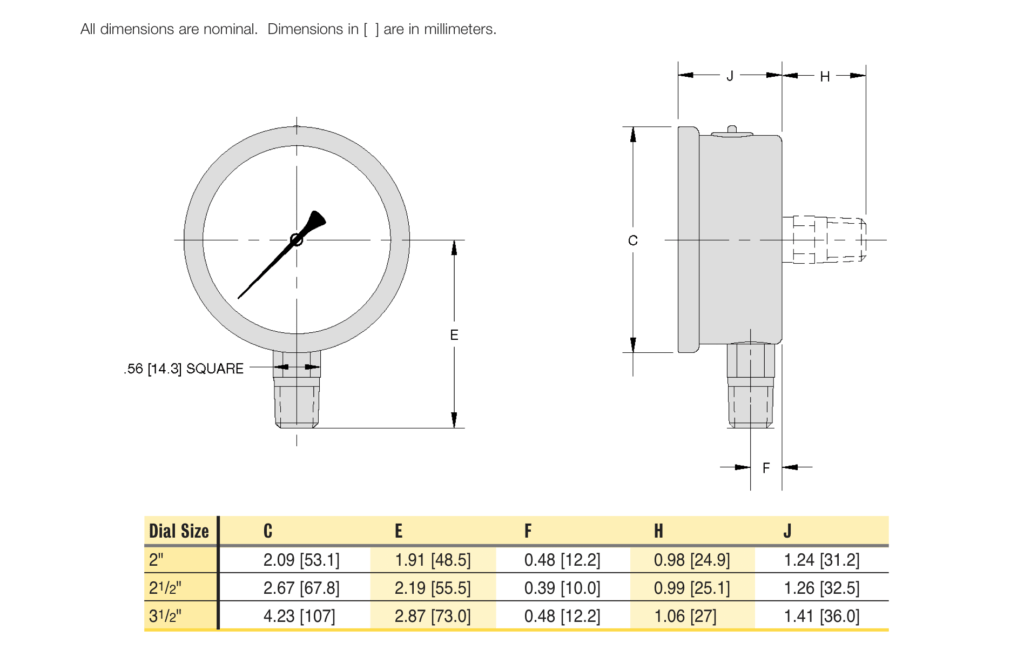

Dimensional Drawings
Complete Specifications
| Models | 800LFB |
| Dial Size | 2", 2½", 3½" |
| Wetted Parts | Bronze tube, brass socket |
| Fill | Glycerine, other fills available See Optional Features Section |
| Movement | Brass |
| Connection | Lower male or center back male ⅛, ¼ NPT |
| Case | 2", 2½" Dial Size: ABS plastic, stem-mounted flangeless 3½" Dial Size: Nylon, stem-mounted flangeless |
| Ring | Crimped aluminum, black finished |
| Window | Styrene-acrylonitrile |
| Pointer | Plain, black finished |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | 2", 2½" Dial Size: ±1.6% Full Scale 3½" Dial Size: ±1.0% Full Scale, ASME B40.100 Grade 1A |
| Maximum Temperature | 150°F (65°C) |
| Approximate Shipping Weight | 2" Dial Size: 0.4 lbs [0.18 kg] 2½" Dial Size: 0.5 lbs [0.23 kg] 3½" Dial Size: 1.0 lbs [0.45 kg] |
Optional Case Styles
Optional Features
Download 800LFB PDF
