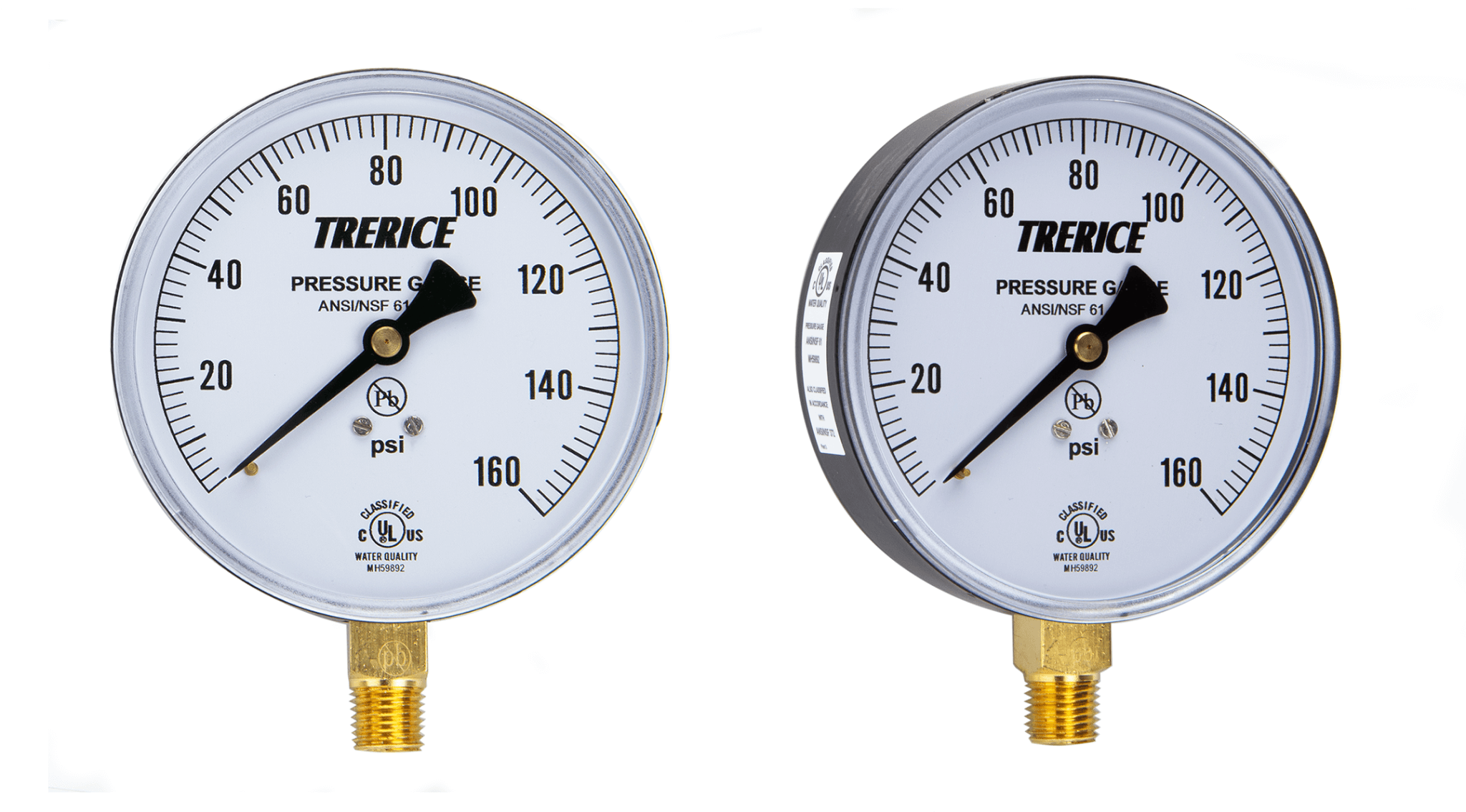

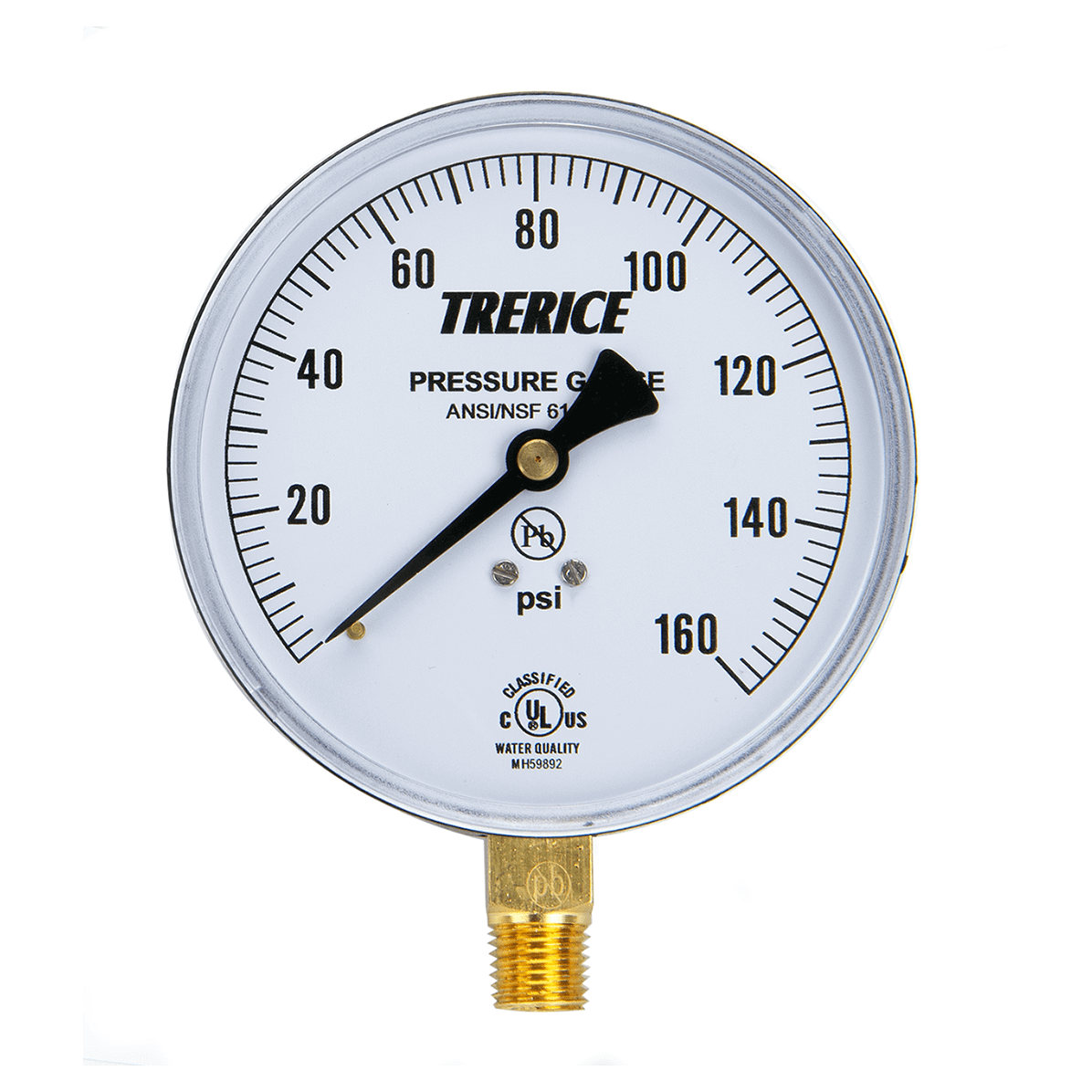

800B Series
Dry • Black Finished Steel Case
The Trerice 800B Utility Gauge is designed for general pressure indication requirements. This gauge provides reliable service at an economical cost. Wetted parts are bronze tube and Lead-Free (PBF) brass socket.
| Case Material | Drawn steel, black finished, stem-mounted flangeless |
|---|---|
| Internals | Brass Socket, Bronze Tube |
| Connection Size | • ⅛ NPT, • ¼ NPT |
| Connection Location | Lower Male, Center Back Male |
| Dial Size | 1½", 2", 2½", 4" |
| Accuracy | ±1.6% Full Scale |
| Ring | Crimped Aluminum, Black-finished |

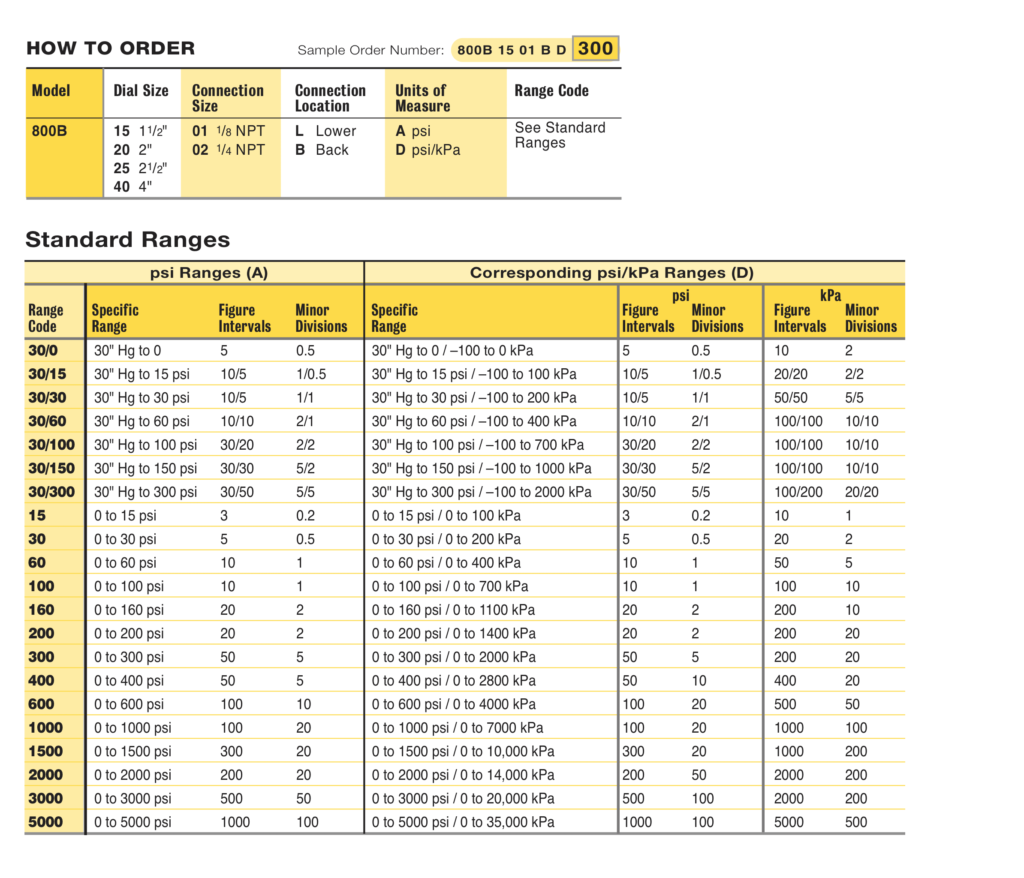

How to Order

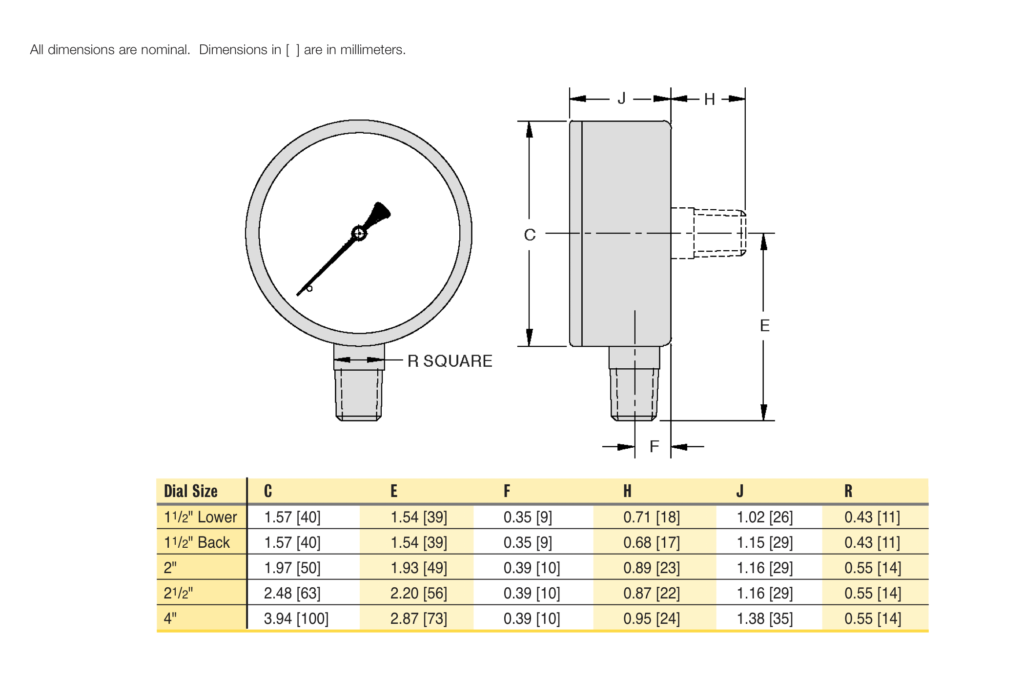

Dimensional Drawings
Complete Specifications
| Model | 800B |
| Dial Size | 1½", 2", 2½", 4" |
| Wetted Parts | Bronze tube, brass socket Lead-Free (PBF) Meets NSF/ANSI Standards 372 and 61 |
| Movement | Brass |
| Connection | 1½" Dial Size: Lower male or center back male, ⅛ NPT 2", 2½" Dial Size: Lower male or center back male, ⅛ or ¼ NPT 4" Dial Size: Lower male or center back male, ¼ NPT |
| Case | Drawn steel, black finished, stem-mounted flangeless |
| Window | Acrylic |
| Pointer | Plain, black finished |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | ±1.6% Full Scale |
| Maximum Temperature | 180°F (82°C) |
| Approximate Shipping Weight | 1½" Dial Size: 0.2 lbs [0.09 kg] 2" Dial Size: 0.3 lbs [0.14 kg] 2½" Dial Size: 0.3 lbs [0.14 kg] 4" Dial Size: 0.6 lbs [0.27 kg] |
Optional Case Styles
Optional Features
