760B
Low Pressure Gauge • Black Finished Steel Case

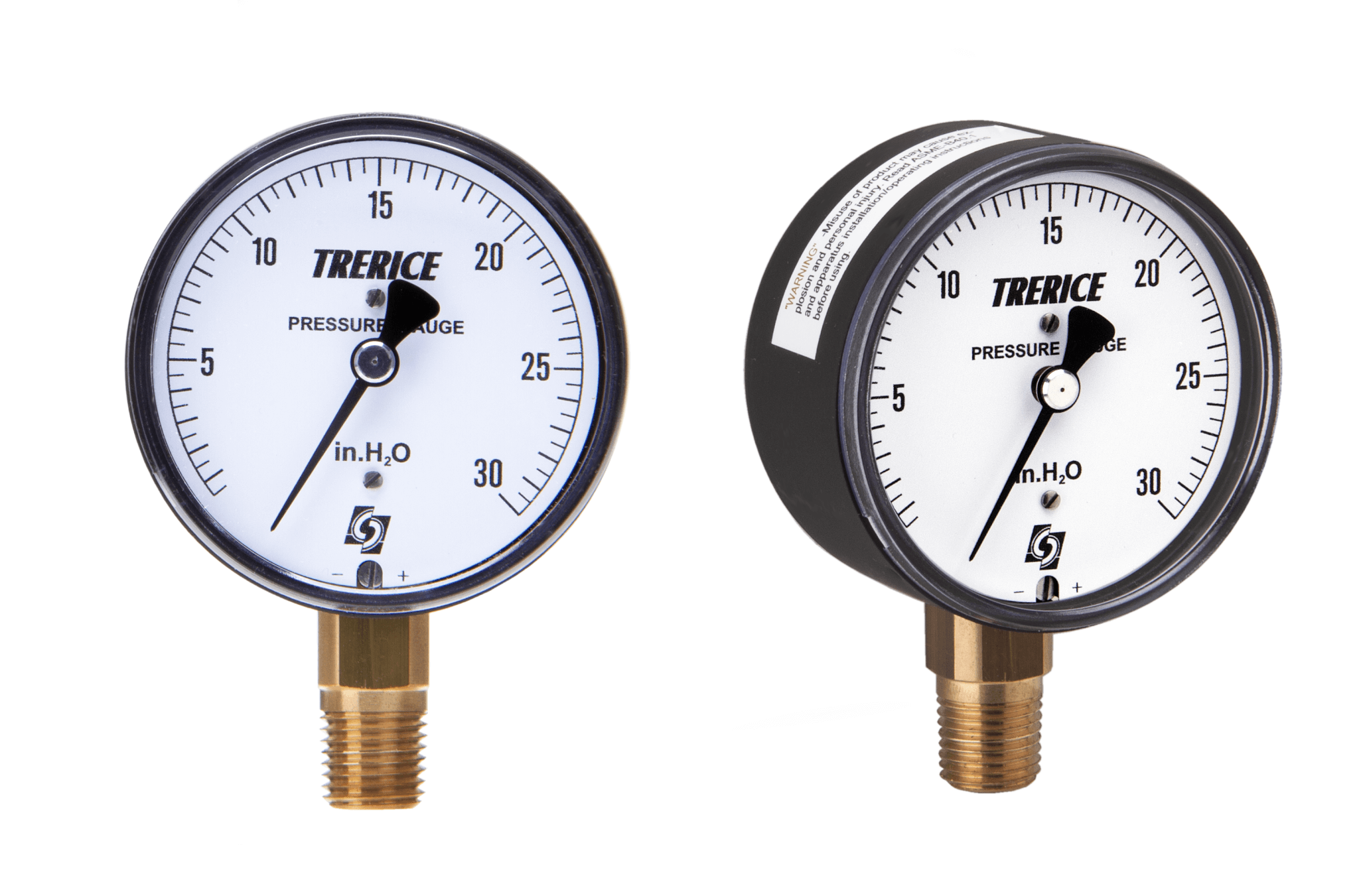

The Trerice 760B Low Pressure Gauge is designed to accurately measure extreme low pressure conditions. This pressure gauge employs a diaphragm capsule sensing element to measure the low pressure. Case material is drawn steel with brass wetted parts.
| Case Material | Drawn steel, black finished, stem mounted flangeless |
|---|---|
| Internals | 316L stainless steel diaphragm capsule, Brass Socket |
| Connection Size | • ¼ NPT |
| Connection Location | Lower Male, Center Back Male |
| Dial Size | 2½", 4" |
| Accuracy | ±1.6% Full Scale |

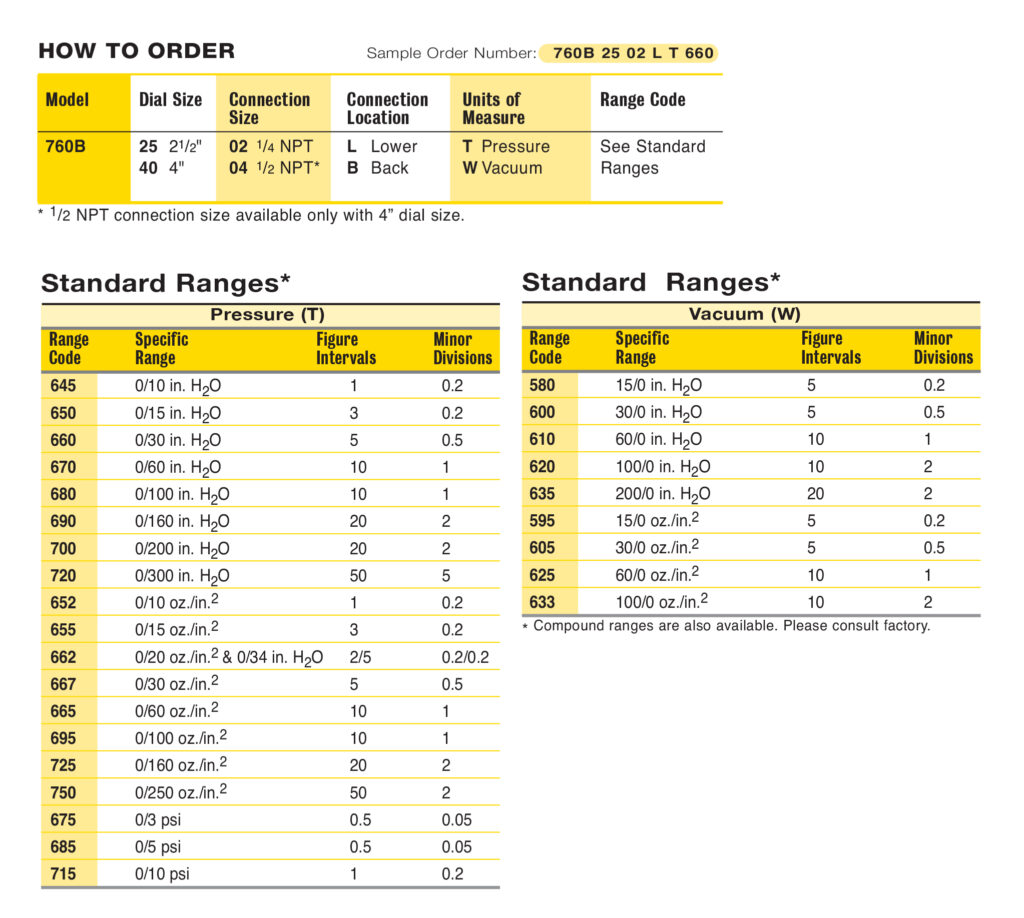

How to Order

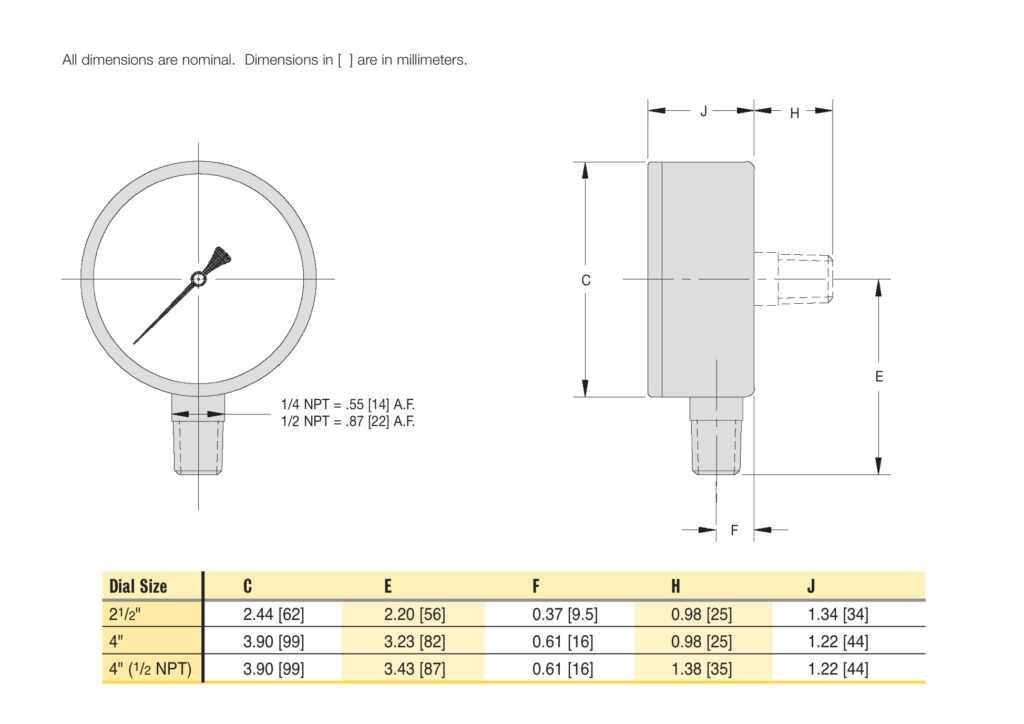

Dimensional Drawings
Complete Specifications
| Models | 760B |
| Dial Sizes | 2½", 4" |
| Wetted Parts | 316 stainless steel diaphram capsule, brass socket |
| Movement | Brass |
| Connection | 2½" Dial Size: Lower male or center back male, ¼ NPT 4", 6" Dial Size: Lower male or lower back male, ¼ or ½ NPT |
| Case | Drawn steel, black finished, stem mounted flangeless |
| Window | Polycarbonate, snap-in |
| Pointer | Plain, black finished, adjustable via dial screw on dial face |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | ±1.6% Full Scale |
| Maximum Temperature | 140°F (65°C) |
| Approximate Shipping Weight | 2½" Dial Size: 0.3 lbs [0.14 kg] 4” Dial Size: 0.89 lbs [0.36 kg] |
Optional Features
Optional Case Styles
Download 760B PDF
