700TA
Low Pressure Gauge • Stainless Steel Case
The Trerice 700Plus Series Transmitter Gauge is designed to provide both local and remote pressure readings through the integration of an independent pressure transmitter to the pressure gauge. This gauge has a stainless steel case and ring, and is field liquid fillable (no kit required). Wetted parts include a stainless steel tube and socket with a ceramic transmitter.
| Case Material | 304 stainless steel, stem-mounted flangeless |
|---|---|
| Internals | Stainless Steel / Dry or Liquid Filled |
| Connection Size | 2½" Dial Size: Lower or center back Tri-clamp, 1½" or 2", 4" Dial Size: Lower or lower back, Tri-clamp, 1½" or 2" |
| Dial Size | 2½", 4" |
| Accuracy | ±1.6% Full Scale |
How to Order

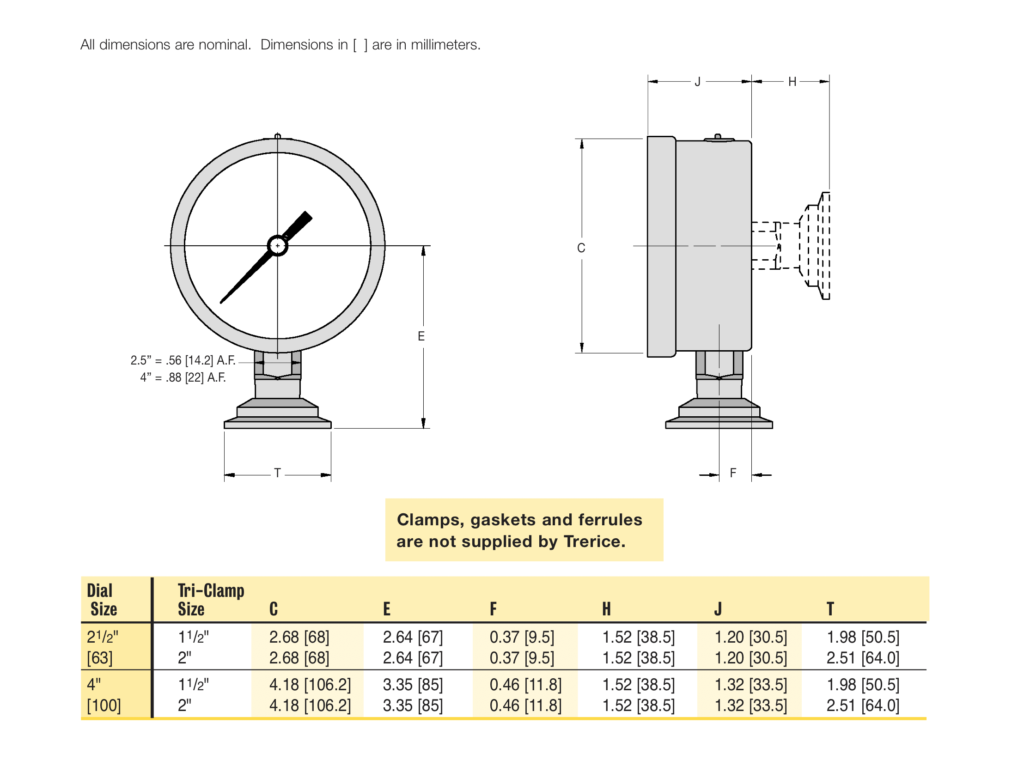

Dimensional Drawings
Complete Specifications
| Models | |
| 700TA | (dry) |
| 700TALF | (liquid filled) |
| Dial Sizes | 2½", 4" |
| Wetted Parts | 316L stainless steel diaphram |
| Fill | Glycerine, other fills available. See Options & Accessories. |
| Movement | Stainless Steel |
| Connection | 2½" Dial Size: Lower or center back Tri-clamp, 1½" or 2" 4" Dial Size: Lower or lower back, Tri-clamp, 1½" or 2" |
| Case | 304 stainless steel, satin finished, stem-mounted flangeless |
| Ring | Crimpped 304 stainless steel, highly polished |
| Window | Safety glass |
| Pointer | Plain, black finished |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | ±1.6% Full Scale |
| Maximum Temperature | 250°F (121°C) |
| Approximate Shipping Weight | 700TA 2½" Dial Size, 1½" Tri-clamp, 1.4 lbs [0.64 kg] 700TA 2½" Dial Size, 2" Tri-clamp, 1.9 lbs [0.86 kg] 700TALF 2½" Dial Size, 1½" Tri-clamp, 1.9 lbs [0.86 kg] 700TALF 2½" Dial Size, 2" Tri-clamp, 2.6 lbs [1.18 kg] 700TA 4" Dial Size, 1½" Tri-clamp, 2.6 lbs [1.18 kg] 700TA 4" Dial Size, 2" Tri-clamp, 3.3 lbs [1.50 kg] 700TALF 4" Dial Size, 1½" Tri-clamp, 3.3 lbs [1.50 kg] 700TALF 4" Dial Size, 2" Tri-clamp, 4.0 lbs [1.81 kg] |
Optional Features
Optional Case Styles
Download 700TA Series PDF
