500X Series
Dial Sizes thru 12″ • Cast Aluminum Case
The Trerice 500X Series Industrial Gauge is designed to withstand the most demanding applications of a variety of industries. This pressure gauge has a back flanged, cast aluminum case and a stainless steel ring. Wetted parts are either bronze tube with Lead-Free (PBF) brass socket or stainless steel tube and socket.
| Case Material | Cast Aluminum |
|---|---|
| Internals | 316 Stainless Steel, Brass |
| Connection Size | • ¼ NPT, • ½ NPT |
| Dial Size | 4½”, 6", 8½", 12" |
| Accuracy | ±0.5% Full Scale |
How to Order

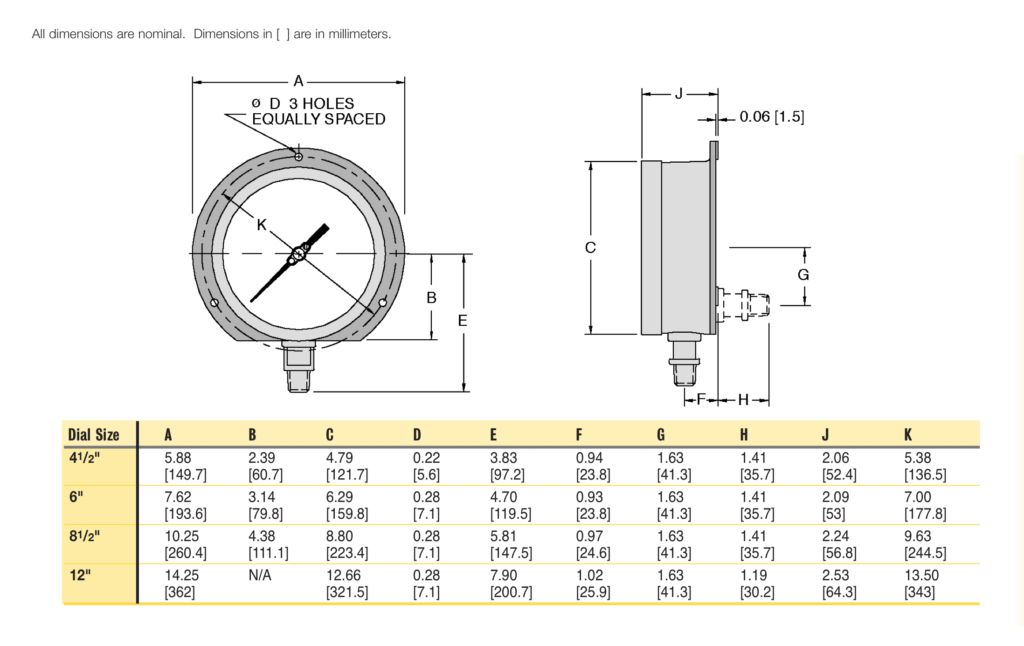

Dimensional Drawings
Complete Specifications
| Models | |
| 500XB | Wetted Parts: Bronze tube, brass socket Lead-Free (PBF) Meets NSF/ANSI Standards 372 and 61 |
| 500XSS | Wetted Parts: 316L stainless steel tube and socket* |
| Dial Size | 4½", 6", 8½", 12" |
| Movement | Stainless steel |
| Connection | Lower male or lower back male, ¼ or ½ NPT |
| Case | Cast aluminum, black finished, surface mounted back flanged |
| Ring | 4½", 6" Dial Size: Friction type, 304 stainless steel |
| 8½", 12" Dial Size: Slotted Stainless Steel | |
| Window | Clear glass |
| Pointer | 4½", 6", 8½" Dial Size: Micro adjustable, black finished |
| 12" Dial Size: Micro-adjustable, knife-edged, adjustable, black finished | |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | ±0.5% Full Scale, ASME B40.100 Grade 2A |
| Maximum Temperature | 250°F (121°C) |
| Approximate Shipping Weight | 4½" Dial Size: 2.0 lbs [0.91 kg] 6" Dial Size: 2.8 lbs [1.27 kg] 8½" Dial Size: 5.8 lbs [2.63 kg] 12" Dial Size: 14.6 lbs [6.62 kg] |
| * Ranges over 10,000 PSI have Ni-Span-C tube. | |
