450 Series
Solid Front • Field Liquid Fillable • Turret Case
| Models | (dry) (liquid-filled) |
| 450B, 450LFB | Wetted Parts: Bronze tube, brass socket |
| 450SS, 450LFSS | Wetted Parts: 316L stainless steel* tube and socket |
| 450M, 450LFM | Wetted Parts: Monel tube and socket (meets NACE MR 01.75) |
| Dial Size | 41/2″ |
| Fill | Glycerine. Other fills available. See Options & Accessories |
| Movement | Stainless steel |
4½” Dial Size
±0.5% Accuracy
Solid Front/Blow-Out Back
Field Liquid Fillable

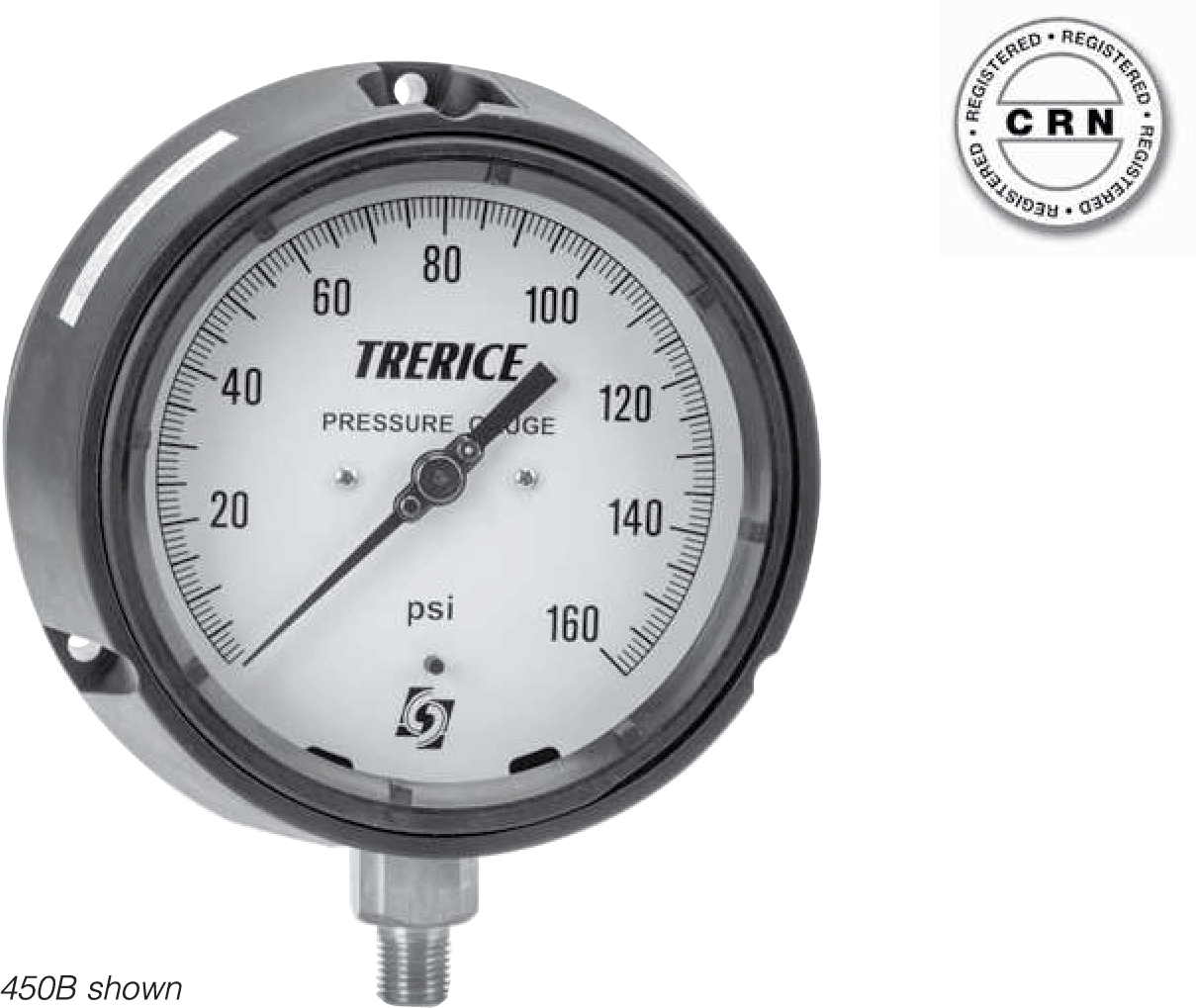

The Trerice 450 Series Process Gauge is designed for the petrochemical and industrial process industries. This solid front, blow-out back gauge is noted for its fiberglass reinforced polypropylene turret case and screwed ring; its sturdy interior design; and its field liquid-fill capability (no kit required). The 450 Series can withstand the most rugged industrial applications, while maintaining precise accuracy. Wetted parts are bronze tube/brass socket, stainless steel, or Monel.
| Models | (dry) (liquid-filled) |
| 450B, 450LFB | Wetted Parts: Bronze tube, brass socket |
| 450SS, 450LFSS | Wetted Parts: 316L stainless steel* tube and socket |
| 450M, 450LFM | Wetted Parts: Monel tube and socket (meets NACE MR 01.75) |
| Dial Size | 41/2″ |
| Fill | Glycerine. Other fills available. See Options & Accessories |
| Movement | Stainless steel |
| Connection | Lower male or lower back male, 1/4 or 1/2 NPT |
| Case |
Fiberglass reinforced polypropylene, turret, solid front with blow-out back
|
| Ring | Threaded fiberglass reinforced polypropylene |
| Window | Acrylic |
| Pointer | Micro adjustable, black finished |
| Dial Face | Aluminum, white background with black graduations and markings |
| Accuracy | ±0.5% Full Scale, ASME B40.100 Grade 2A |
| Additional Features | Overload and underload stops |
| Maximum Temperature | 450B, 450SS, 450M: 250˚F (121˚C) |
| Approximate Shipping Weight | 450B, 450SS, 450M: 2.2 lbs [1.00 kg] |
| * Ranges over 10,000 PSI have Ni-Span-C tube. |
